3.K8s必知必会

soulballad
2021-03-09 / 0 评论 / 0 点赞 / 66 阅读 / 19,294 字
温馨提示:
本文最后更新于 2022-03-03,若内容或图片失效,请留言反馈。部分素材来自网络,若不小心影响到您的利益,请联系我们删除。

1 Controllers

官网https://kubernetes.io/docs/concepts/workloads/controllers/

ReplicationController(RC)

官网https://kubernetes.io/docs/concepts/workloads/controllers/replicationcontroller/

A ReplicationController ensures that a specified number of pod replicas are running at any one time. In other words, a ReplicationController makes sure that a pod or a homogeneous set of pods is always up and available.

ReplicationController定义了一个期望的场景,即声明某种Pod的副本数量在任意时刻都符合某个预期值,所以RC的定义包含以下几个部分:

  • Pod期待的副本数(replicas)
  • 用于筛选目标Pod的Label Selector
  • 当Pod的副本数量小于预期数量时,用于创建新Pod的Pod模板(template)

也就是说通过RC实现了集群中Pod的高可用,减少了传统IT环境中手工运维的工作。

Have a try

kind:表示要新建对象的类型

spec.selector:表示需要管理的Pod的label,这里表示包含app: nginx的label的Pod都会被该RC管理

spec.replicas:表示受此RC管理的Pod需要运行的副本数

spec.template:表示用于定义Pod的模板,比如Pod名称、拥有的label以及Pod中运行的应用等

通过改变RC里Pod模板中的镜像版本,可以实现Pod的升级功能

kubectl apply -f nginx-pod.yaml,此时k8s会在所有可用的Node上,创建3个Pod,并且每个Pod都有一个app: nginx的label,同时每个Pod中都运行了一个nginx容器。

如果某个Pod发生问题,Controller Manager能够及时发现,然后根据RC的定义,创建一个新的Pod

扩缩容:kubectl scale rc nginx --replicas=5

example

  1. 创建名为nginx_replication.yaml
apiVersion: v1
kind: ReplicationController
metadata:
  name: nginx
spec:
  replicas: 3
  selector:
	app: nginx
  template:
	metadata:
	  name: nginx
	  labels:
		app: nginx
	spec:
	  containers:
	  - name: nginx
		image: nginx
		ports:
		- containerPort: 80
  1. 根据nginx_replication.yaml创建pod
kubectl apply -f nginx_replication.yaml

  1. 查看pod
kubectl get pods -o wide
   NAME      READY     STATUS
nginx-hksg8   1/1     Running   0          44s   192.168.80.195   w2
nginx-q7bw5   1/1     Running   0          44s   192.168.190.67   w1
nginx-zzwzl   1/1     Running   0          44s   192.168.190.68   w1
kubectl get rc
NAME    DESIRED   CURRENT   READY   AGE
nginx   3         3         3       2m54s

  1. 尝试删除一个pod
kubectl delete pods nginx-zzwzl
kubectl get pods

  1. 对pod进行扩缩容

rc = ReplicationController 简写

kubectl scale rc nginx --replicas=5
kubectl get pods
nginx-8fctt   0/1     ContainerCreating   0          2s
nginx-9pgwk   0/1     ContainerCreating   0          2s
nginx-hksg8   1/1     Running             0          6m50s
nginx-q7bw5   1/1     Running             0          6m50s
nginx-wzqkf   1/1     Running             0          99s

  1. 删除pod
kubectl delete -f nginx_replication.yaml

ReplicaSet(RS)

官网https://kubernetes.io/docs/concepts/workloads/controllers/replicaset/

A ReplicaSet’s purpose is to maintain a stable set of replica Pods running at any given time. As such, it is often used to guarantee the availability of a specified number of identical Pods.

在Kubernetes v1.2时,RC就升级成了另外一个概念:Replica Set,官方解释为 “下一代RC

ReplicaSet和RC没有本质的区别,kubectl中绝大部分作用于RC的命令同样适用于RS

RS与RC唯一的区别是:RS支持基于集合的Label Sel ector(Set-based selector),而RC只支持基于等式的Label Selector(equality-based selector),这使得Replica Set的功能更强

Have a try

apiVersion: extensions/v1beta1
kind: ReplicaSet
metadata:
  name: frontend
spec:
  matchLabels:
    tier: frontend
  matchExpressions:
    - {key:tier,operator: In,values: [frontend]}
  template:
  ...

注意:一般情况下,我们很少单独使用Replica Set,它主要是被Deployment这个更高的资源对象所使用,从而形成一整套Pod创建、删除、更新的编排机制。当我们使用Deployment时,无须关心它是如何创建和维护Replica Set的,这一切都是自动发生的。同时,无需担心跟其他机制的不兼容问题(比如ReplicaSet不支持rolling-update但Deployment支持)。

Deployment

官网https://kubernetes.io/docs/concepts/workloads/controllers/deployment/

A Deployment provides declarative updates for Pods and ReplicaSets.

You describe a desired state in a Deployment, and the Deployment Controller changes the actual state to the desired state at a controlled rate. You can define Deployments to create new ReplicaSets, or to remove existing Deployments and adopt all their resources with new Deployments.

Deployment相对RC最大的一个升级就是我们可以随时知道当前Pod“部署”的进度。

创建一个Deployment对象来生成对应的Replica Set并完成Pod副本的创建过程

检查Deploymnet的状态来看部署动作是否完成(Pod副本的数量是否达到预期的值)

example

  1. 创建nginx_deployment.yaml文件

    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: nginx-deployment
      labels:
        app: nginx
    spec:
      replicas: 3
      selector:
        matchLabels:
         app: nginx
      template:
        metadata:
         labels:
          app: nginx
        spec:
          containers:
          - name: nginx
            image: nginx:1.7.9
            ports:
            - containerPort: 80

  2. 根据nginx_deployment.yaml文件创建pod

    kubectl apply -f nginx_deployment.yaml


  3. 查看pod

    kubectl get pods -o wide

    kubectl get deployment

    kubectl get rs

    kubectl get deployment -o wide

    nginx-deployment-6dd86d77d-f7dxb   1/1     Running   0      22s   192.168.80.198   w2
    nginx-deployment-6dd86d77d-npqxj   1/1     Running   0      22s   192.168.190.71   w1
    nginx-deployment-6dd86d77d-swt25   1/1     Running   0      22s   192.168.190.70   w1


    nginx-deployment[deployment]-6dd86d77d[replicaset]-f7dxb[pod]

  4. 当前nginx的版本

    kubectl get deployment -o wide
    NAME    READY   UP-TO-DATE   AVAILABLE   AGE     CONTAINERS   IMAGES      SELECTOR
    nginx-deployment   3/3         3     3  3m27s      nginx    nginx:1.7.9   app=nginx


  5. 更新nginx的image版本

    kubectl set image deployment nginx-deployment nginx=nginx:1.9.1


  6. 查询 replicaset 信息

    kubectl get rs -o wide


2 Labels and Selectors

在前面的yaml文件中,看到很多label,顾名思义,就是给一些资源打上标签的

官网https://kubernetes.io/docs/concepts/overview/working-with-objects/labels/

Labels are key/value pairs that are attached to objects, such as pods.
apiVersion: v1
kind: Pod
metadata:
  name: nginx-pod
  labels:
    app: nginx

表示名称为nginx-pod的pod,有一个label,key为app,value为nginx。

我们可以将具有同一个label的pod,交给selector管理

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
  labels:
    app: nginx
spec:
  replicas: 3
  selector:             # 匹配具有同一个label属性的pod标签
    matchLabels:
      app: nginx
  template:             # 定义pod的模板
    metadata:
      labels:
        app: nginx      # 定义当前pod的label属性,app为key,value为nginx
    spec:
      containers:
      - name: nginx
        image: nginx:1.7.9
        ports:
        - containerPort: 80

查看pod的label标签:kubectl get pods --show-labels

这里可以尝试一下selector匹配不上的结果

3 Namespace

kubectl get pods

kubectl get pods -n kube-system

比较一下,上述两行命令的输入是否一样,发现不一样,是因为Pod属于不同的Namespace。

查看一下当前的命名空间:kubectl get namespaces/ns

NAME              STATUS   AGE
default           Active   27m
kube-node-lease   Active   27m
kube-public       Active   27m
kube-system       Active   27m

其实说白了,命名空间就是为了隔离不同的资源,比如:Pod、Service、Deployment等。可以在输入命令的时候指定命名空间-n,如果不指定,则使用默认的命名空间:default。

创建命名空间

myns-namespace.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: myns

kubectl apply -f myns-namespace.yaml

kubectl get namespaces/ns

NAME              STATUS   AGE
default           Active   38m
kube-node-lease   Active   38m
kube-public       Active   38m
kube-system       Active   38m
myns              Active   6s

指定命名空间下的资源

比如创建一个pod,属于myns命名空间下

vi nginx-pod.yaml

kubectl apply -f nginx-pod.yaml

apiVersion: v1
kind: Pod
metadata:
  name: nginx-pod
  namespace: myns
spec:
  containers:
  - name: nginx-container
    image: nginx
    ports:
    - containerPort: 80

查看myns命名空间下的Pod和资源

kubectl get pods

kubectl get pods -n myns

kubectl get all -n myns

kubectl get pods --all-namespaces #查找所有命名空间下的pod

4 Network

4.1 同一个Pod中的容器通信

接下来就要说到跟Kubernetes网络通信相关的内容咯

我们都知道K8S最小的操作单位是Pod,先思考一下同一个Pod中多个容器要进行通信

由官网的这段话可以看出,同一个pod中的容器是共享网络ip地址和端口号的,通信显然没问题

Each Pod is assigned a unique IP address. Every container in a Pod shares the network namespace, including the IP address and network ports.

那如果是通过容器的名称进行通信呢?就需要将所有pod中的容器加入到同一个容器的网络中,我们把该容器称作为pod中的pause container。

4.2 集群内Pod之间的通信

接下来就聊聊K8S最小的操作单元,Pod之间的通信

我们都之间Pod会有独立的IP地址,这个IP地址是被Pod中所有的Container共享的

那多个Pod之间的通信能通过这个IP地址吗?

我认为需要分两个维度:一是集群中同一台机器中的Pod,二是集群中不同机器中的Pod

准备两个pod,一个nginx,一个busybox

nginx_pod.yaml

apiVersion: v1
kind: Pod
metadata:
  name: nginx-pod
  labels:
     app: nginx
spec:
  containers:
   - name: nginx-container
      image: nginx
      ports:
       - containerPort: 80

busybox_pod.yaml

apiVersion: v1
kind: Pod
metadata:
  name: busybox
  labels:
     app: busybox
spec:
  containers:
  - name: busybox
     image: busybox
     command: ['sh', '-c', 'echo The app is running! && sleep 3600']

将两个pod运行起来,并且查看运行情况

kubectl apply -f nginx_pod.yaml

kubectl apply -f busy_pod.yaml

kubectl get pods -o wide

NAME      READY  STATUS    RESTARTS   AGE         IP                NODE
busybox    1/1   Running      0       49s    192.168.221.70   worker02-kubeadm-k8s
nginx-pod  1/1   Running      0      7m46s   192.168.14.1     worker01-kubeadm-k8s

发现:nginx-pod的ip为192.168.14.1 busybox-pod的ip为192.168.221.70

同一个集群中同一台机器

(1)来到worker01:ping 192.168.14.1

PING 192.168.14.1 (192.168.14.1) 56(84) bytes of data.
64 bytes from 192.168.14.1: icmp_seq=1 ttl=64 time=0.063 ms
64 bytes from 192.168.14.1: icmp_seq=2 ttl=64 time=0.048 ms

(2)来到worker01:curl 192.168.14.1

<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
    body {
        width: 35em;
        margin: 0 auto;
        font-family: Tahoma, Verdana, Arial, sans-serif;
    }
</style>

同一个集群中不同机器

(1)来到worker02:ping 192.168.14.1

[root@worker02-kubeadm-k8s ~]# ping 192.168.14.1
PING 192.168.14.1 (192.168.14.1) 56(84) bytes of data.
64 bytes from 192.168.14.1: icmp_seq=1 ttl=63 time=0.680 ms
64 bytes from 192.168.14.1: icmp_seq=2 ttl=63 time=0.306 ms
64 bytes from 192.168.14.1: icmp_seq=3 ttl=63 time=0.688 ms

(2)来到worker02:curl 192.168.14.1,同样可以访问nginx

(3)来到master:

ping/curl 192.168.14.1 访问的是worker01上的nginx-pod

ping 192.168.221.70 访问的是worker02上的busybox-pod

(4)来到worker01:ping 192.168.221.70 访问的是worker02上的busybox-pod

Calico 插件实现集群通信

How to implement the Kubernetes Cluster networking model--Calico

官网https://kubernetes.io/docs/concepts/cluster-administration/networking/#the-kubernetes-network-model

  • pods on a node can communicate with all pods on all nodes without NAT
  • agents on a node (e.g. system daemons, kubelet) can communicate with all pods on that node
  • pods in the host network of a node can communicate with all pods on all nodes without NAT

4.3 集群内Service-Cluster IP

对于上述的Pod虽然实现了集群内部互相通信,但是Pod是不稳定的,比如通过Deployment管理Pod,随时可能对Pod进行扩缩容,这时候Pod的IP地址是变化的。能够有一个固定的IP,使得集群内能够访问。也就是之前在架构描述的时候所提到的,能够把相同或者具有关联的Pod,打上Label,组成Service。而Service有固定的IP,不管Pod怎么创建和销毁,都可以通过Service的IP进行访问

Service官网https://kubernetes.io/docs/concepts/services-networking/service/

An abstract way to expose an application running on a set of Pods as a network service.
With Kubernetes you don’t need to modify your application to use an unfamiliar service discovery mechanism. Kubernetes gives Pods their own IP addresses and a single DNS name for a set of Pods, and can load-balance across them.

example

  1. 创建whoami-deployment.yaml文件,并且apply

    	  apiVersion: apps/v1
    	  kind: Deployment
    	  metadata:
    		name: whoami-deployment
    		labels:
    		  app: whoami
    	  spec:
    		replicas: 3
    		selector:
    		  matchLabels:
    			app: whoami
    		template:
    		  metadata:
    			labels:
    			  app: whoami
    		  spec:
    			containers:
    			- name: whoami
    			  image: jwilder/whoami
    			  ports:
    			  - containerPort: 8000

  2. 查看pod以及service

    	whoami-deployment-5dd9ff5fd8-22k9n   192.168.221.80   worker02-kubeadm-k8s
    	whoami-deployment-5dd9ff5fd8-vbwzp   192.168.14.6     worker01-kubeadm-k8s
    	whoami-deployment-5dd9ff5fd8-zzf4d   192.168.14.7     worker01-kubeadm-k8s



    kubect get svc:可以发现目前并没有关于whoami的service

    	  NAME         TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)   AGE
    	  kubernetes   ClusterIP   10.96.0.1    <none>        443/TCP   19h


    1. 在集群内正常访问

      curl 192.168.221.80:8000/192.168.14.6:8000/192.168.14.7:8000


  3. 创建whoami的service

    注意:该地址只能在集群内部访问

    kubectl expose deployment whoami-deployment
    kubectl get svc
    删除svc   kubectl delete service whoami-deployment
    [root@master-kubeadm-k8s ~]# kubectl get svc
    NAME                TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)    AGE
    kubernetes          ClusterIP   10.96.0.1        <none>        443/TCP    19h
    whoami-deployment   ClusterIP   10.105.147.59   <none>        8000/TCP   23s


    可以发现有一个Cluster IP类型的service,名称为whoami-deployment,IP地址为10.101.201.192

  4. 通过Service的Cluster IP访问

    	  [root@master-kubeadm-k8s ~]# curl 10.105.147.59:8000
    	  I'm whoami-deployment-678b64444d-b2695
    	  [root@master-kubeadm-k8s ~]# curl 10.105.147.59:8000
    	  I'm whoami-deployment-678b64444d-hgdrk
    	  [root@master-kubeadm-k8s ~]# curl 10.105.147.59:8000
    	  I'm whoami-deployment-678b64444d-65t88


  5. 具体查看一下whoami-deployment的详情信息,发现有一个Endpoints连接了具体3个Pod

    	  [root@master-kubeadm-k8s ~]# kubectl describe svc whoami-deployment
    	  Name:              whoami-deployment
    	  Namespace:         default
    	  Labels:            app=whoami
    	  Annotations:       <none>
    	  Selector:          app=whoami
    	  Type:              ClusterIP
    	  IP:                10.105.147.59
    	  Port:              <unset>  8000/TCP
    	  TargetPort:        8000/TCP
    	  Endpoints:         192.168.14.8:8000,192.168.221.81:8000,192.168.221.82:8000
    	  Session Affinity:  None
    	  Events:            <none>


  6. 不妨对whoami扩容成5个

    	  kubectl scale deployment whoami-deployment --replicas=5


  7. 再次访问:curl 10.105.147.59:8000

  8. 再次查看service具体信息:kubectl describe svc whoami-deployment

  9. 其实对于Service的创建,不仅仅可以使用kubectl expose,也可以定义一个yaml文件

    apiVersion: v1
    kind: Service
    metadata:
      name: my-service
    spec:
      selector:
        app: MyApp
      ports:
        - protocol: TCP
          port: 80
          targetPort: 9376
      type: Cluster


    conclusion:其实Service存在的意义就是为了Pod的不稳定性,而上述探讨的就是关于Service的一种类型Cluster IP,只能供集群内访问

以Pod为中心,已经讨论了关于集群内的通信方式,接下来就是探讨集群中的Pod访问外部服务,以及外部服务访问集群中的Pod

4.4 Pod访问外部服务

比较简单,没太多好说的内容,直接访问即可

4.5 外部服务访问集群中的Pod

Service-NodePort

也是Service的一种类型,可以通过NodePort的方式

说白了,因为外部能够访问到集群的物理机器IP,所以就是在集群中每台物理机器上暴露一个相同的IP,比如32008

  1. 根据whoami-deployment.yaml创建pod

    	apiVersion: apps/v1
    	kind: Deployment
    	metadata:
    	  name: whoami-deployment
    	  labels:
    		app: whoami
    	spec:
    	  replicas: 3
    	  selector:
    		matchLabels:
    		  app: whoami
    	  template:
    		metadata:
    		  labels:
    			app: whoami
    		spec:
    		  containers:
    		  - name: whoami
    			image: jwilder/whoami
    			ports:
    			- containerPort: 8000

  2. 创建NodePort类型的service,名称为whoami-deployment

    	kubectl delete svc whoami-deployment
    	kubectl expose deployment whoami-deployment --type=NodePort
    	[root@master-kubeadm-k8s ~]# kubectl get svc
    	NAME                TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)          AGE
    	kubernetes          ClusterIP   10.96.0.1      <none>        443/TCP          21h
    	whoami-deployment   NodePort    10.99.108.82   <none>        8000:32041/TCP   7s


  3. 注意上述的端口32041,实际上就是暴露在集群中物理机器上的端口

    	lsof -i tcp:32041
    	netstat -ntlp|grep 32041

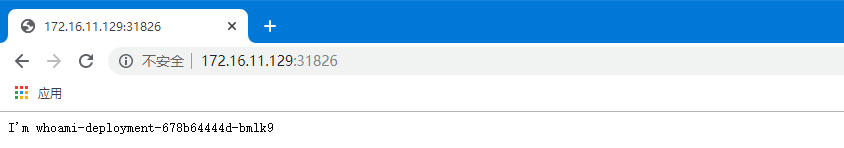

  4. 浏览器通过物理机器的IP访问

    	http://192.168.0.51:32041
    	curl 192.168.0.61:32041


![](https://soulballad.coding.net/p/picgo/d/img/git/raw/master/2021/07/24/20210308222216.png)

conclusion:NodePort虽然能够实现外部访问Pod的需求,但是真的好吗?其实不好,占用了各个物理主机上的端口

Service-LoadBalance

通常需要第三方云提供商支持,有约束性

Ingress

官网https://kubernetes.io/docs/concepts/services-networking/ingress/

An API object that manages external access to the services in a cluster, typically HTTP.

Ingress can provide load balancing, SSL termination and name-based virtual hosting.

可以发现,Ingress就是帮助我们访问集群内的服务的。不过在看Ingress之前,我们还是先以一个案例出发。

很简单,在K8S集群中部署tomcat

浏览器想要访问这个tomcat,也就是外部要访问该tomcat,用之前的Service-NodePort的方式是可以的,比如暴露一个32008端口,只需要访问192.168.0.61:32008即可。

vi my-tomcat.yaml

kubectl apply -f my-tomcat.yaml

kubectl get pods

kubectl get deployment

kubectl get svc

tomcat-service NodePort 10.105.51.97 <none> 80:31032/TCP 37s

apiVersion: apps/v1
kind: Deployment
metadata:
  name: tomcat-deployment
  labels:
    app: tomcat
spec:
  replicas: 1
  selector:
    matchLabels:
      app: tomcat
  template:
    metadata:
      labels:
        app: tomcat
    spec:
      containers:
      - name: tomcat
        image: tomcat
        ports:
        - containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
  name: tomcat-service
spec:
  ports:
  - port: 80
    protocol: TCP
    targetPort: 8080
  selector:
    app: tomcat
  type: NodePort

显然,Service-NodePort的方式生产环境不推荐使用,那接下来就基于上述需求,使用Ingress实现访问tomcat的需求。

官网Ingress: https://kubernetes.io/docs/concepts/services-networking/ingress/
GitHub Ingress Nginx: https://github.com/kubernetes/ingress-nginx
Nginx Ingress Controller: <https://kubernetes.github.io/ingress-nginx/

example

  1. 下载 mandatory.yaml

    https://github.com/kubernetes/ingress-nginx/edit/master/deploy/static/mandatory.yaml

    	apiVersion: v1
    	kind: Namespace
    	metadata:
    	  name: ingress-nginx
    	  labels:
    	    app.kubernetes.io/name: ingress-nginx
    	    app.kubernetes.io/part-of: ingress-nginx

    	---

    	kind: ConfigMap
    	apiVersion: v1
    	metadata:
    	  name: nginx-configuration
    	  namespace: ingress-nginx
    	  labels:
    	    app.kubernetes.io/name: ingress-nginx
    	    app.kubernetes.io/part-of: ingress-nginx

    	---
    	kind: ConfigMap
    	apiVersion: v1
    	metadata:
    	  name: tcp-services
    	  namespace: ingress-nginx
    	  labels:
    	    app.kubernetes.io/name: ingress-nginx
    	    app.kubernetes.io/part-of: ingress-nginx

    	---
    	kind: ConfigMap
    	apiVersion: v1
    	metadata:
    	  name: udp-services
    	  namespace: ingress-nginx
    	  labels:
    	    app.kubernetes.io/name: ingress-nginx
    	    app.kubernetes.io/part-of: ingress-nginx

    	---
    	apiVersion: v1
    	kind: ServiceAccount
    	metadata:
    	  name: nginx-ingress-serviceaccount
    	  namespace: ingress-nginx
    	  labels:
    	    app.kubernetes.io/name: ingress-nginx
    	    app.kubernetes.io/part-of: ingress-nginx

    	---
    	apiVersion: rbac.authorization.k8s.io/v1beta1
    	kind: ClusterRole
    	metadata:
    	  name: nginx-ingress-clusterrole
    	  labels:
    	    app.kubernetes.io/name: ingress-nginx
    	    app.kubernetes.io/part-of: ingress-nginx
    	rules:
    	  - apiGroups:
    	      - ""
    	    resources:
    	      - configmaps
    	      - endpoints
    	      - nodes
    	      - pods
    	      - secrets
    	    verbs:
    	      - list
    	      - watch
    	  - apiGroups:
    	      - ""
    	    resources:
    	      - nodes
    	    verbs:
    	      - get
    	  - apiGroups:
    	      - ""
    	    resources:
    	      - services
    	    verbs:
    	      - get
    	      - list
    	      - watch
    	  - apiGroups:
    	      - ""
    	    resources:
    	      - events
    	    verbs:
    	      - create
    	      - patch
    	  - apiGroups:
    	      - "extensions"
    	      - "networking.k8s.io"
    	    resources:
    	      - ingresses
    	    verbs:
    	      - get
    	      - list
    	      - watch
    	  - apiGroups:
    	      - "extensions"
    	      - "networking.k8s.io"
    	    resources:
    	      - ingresses/status
    	    verbs:
    	      - update

    	---
    	apiVersion: rbac.authorization.k8s.io/v1beta1
    	kind: Role
    	metadata:
    	  name: nginx-ingress-role
    	  namespace: ingress-nginx
    	  labels:
    	    app.kubernetes.io/name: ingress-nginx
    	    app.kubernetes.io/part-of: ingress-nginx
    	rules:
    	  - apiGroups:
    	      - ""
    	    resources:
    	      - configmaps
    	      - pods
    	      - secrets
    	      - namespaces
    	    verbs:
    	      - get
    	  - apiGroups:
    	      - ""
    	    resources:
    	      - configmaps
    	    resourceNames:
    	      # Defaults to "<election-id>-<ingress-class>"
    	      # Here: "<ingress-controller-leader>-<nginx>"
    	      # This has to be adapted if you change either parameter
    	      # when launching the nginx-ingress-controller.
    	      - "ingress-controller-leader-nginx"
    	    verbs:
    	      - get
    	      - update
    	  - apiGroups:
    	      - ""
    	    resources:
    	      - configmaps
    	    verbs:
    	      - create
    	  - apiGroups:
    	      - ""
    	    resources:
    	      - endpoints
    	    verbs:
    	      - get

    	---
    	apiVersion: rbac.authorization.k8s.io/v1beta1
    	kind: RoleBinding
    	metadata:
    	  name: nginx-ingress-role-nisa-binding
    	  namespace: ingress-nginx
    	  labels:
    	    app.kubernetes.io/name: ingress-nginx
    	    app.kubernetes.io/part-of: ingress-nginx
    	roleRef:
    	  apiGroup: rbac.authorization.k8s.io
    	  kind: Role
    	  name: nginx-ingress-role
    	subjects:
    	  - kind: ServiceAccount
    	    name: nginx-ingress-serviceaccount
    	    namespace: ingress-nginx

    	---
    	apiVersion: rbac.authorization.k8s.io/v1beta1
    	kind: ClusterRoleBinding
    	metadata:
    	  name: nginx-ingress-clusterrole-nisa-binding
    	  labels:
    	    app.kubernetes.io/name: ingress-nginx
    	    app.kubernetes.io/part-of: ingress-nginx
    	roleRef:
    	  apiGroup: rbac.authorization.k8s.io
    	  kind: ClusterRole
    	  name: nginx-ingress-clusterrole
    	subjects:
    	  - kind: ServiceAccount
    	    name: nginx-ingress-serviceaccount
    	    namespace: ingress-nginx

    	---

    	apiVersion: apps/v1
    	kind: Deployment
    	metadata:
    	  name: nginx-ingress-controller
    	  namespace: ingress-nginx
    	  labels:
    	    app.kubernetes.io/name: ingress-nginx
    	    app.kubernetes.io/part-of: ingress-nginx
    	spec:
    	  replicas: 1
    	  selector:
    	    matchLabels:
    	      app.kubernetes.io/name: ingress-nginx
    	      app.kubernetes.io/part-of: ingress-nginx
    	  template:
    	    metadata:
    	      labels:
    	        app.kubernetes.io/name: ingress-nginx
    	        app.kubernetes.io/part-of: ingress-nginx
    	      annotations:
    	        prometheus.io/port: "10254"
    	        prometheus.io/scrape: "true"
    	    spec:
    	      # wait up to five minutes for the drain of connections
    	      terminationGracePeriodSeconds: 300
    	      serviceAccountName: nginx-ingress-serviceaccount
    	      nodeSelector:
    	        kubernetes.io/os: linux
    	      containers:
    	        - name: nginx-ingress-controller
    	          image: quay.io/kubernetes-ingress-controller/nginx-ingress-controller:0.26.1
    	          args:
    	            - /nginx-ingress-controller
    	            - --configmap=$(POD_NAMESPACE)/nginx-configuration
    	            - --tcp-services-configmap=$(POD_NAMESPACE)/tcp-services
    	            - --udp-services-configmap=$(POD_NAMESPACE)/udp-services
    	            - --publish-service=$(POD_NAMESPACE)/ingress-nginx
    	            - --annotations-prefix=nginx.ingress.kubernetes.io
    	          securityContext:
    	            allowPrivilegeEscalation: true
    	            capabilities:
    	              drop:
    	                - ALL
    	              add:
    	                - NET_BIND_SERVICE
    	            # www-data -> 33
    	            runAsUser: 33
    	          env:
    	            - name: POD_NAME
    	              valueFrom:
    	                fieldRef:
    	                  fieldPath: metadata.name
    	            - name: POD_NAMESPACE
    	              valueFrom:
    	                fieldRef:
    	                  fieldPath: metadata.namespace
    	          ports:
    	            - name: http
    	              containerPort: 80
    	              protocol: TCP
    	            - name: https
    	              containerPort: 443
    	              protocol: TCP
    	          livenessProbe:
    	            failureThreshold: 3
    	            httpGet:
    	              path: /healthz
    	              port: 10254
    	              scheme: HTTP
    	            initialDelaySeconds: 10
    	            periodSeconds: 10
    	            successThreshold: 1
    	            timeoutSeconds: 10
    	          readinessProbe:
    	            failureThreshold: 3
    	            httpGet:
    	              path: /healthz
    	              port: 10254
    	              scheme: HTTP
    	            periodSeconds: 10
    	            successThreshold: 1
    	            timeoutSeconds: 10
    	          lifecycle:
    	            preStop:
    	              exec:
    	                command:
    	                  - /wait-shutdown

    	---

  2. 以Deployment方式创建Pod,该Pod为Ingress Nginx Controller,要想让外界访问,可以通过Service的NodePort或者HostPort方式,这里选择HostPort,比如指定worker01运行

# 确保nginx-controller运行到w1节点上
kubectl label node w1 name=ingress
# 使用HostPort方式运行,需要增加配置
hostNetwork: true
# 搜索nodeSelector,并且要确保w1节点上的80和443端口没有被占用,镜像拉取需要较长的时间,这块注意一下哦
# mandatory.yaml在网盘中的“课堂源码”目录
kubectl apply -f mandatory.yaml
kubectl get all -n ingress-nginx

新增如图所示配置,根据 name=ingress 选择运行的节点,hostNetwork=true 以 HostPort 的方式暴露端口

执行 yaml 文件,并查看 namespace 下 pod

  1. 查看w1的80和443端口
lsof -i tcp:80
lsof -i tcp:443

  1. 创建tomcat的pod和service

记得将之前的tomcat删除:kubectl delete -f my-tomcat.yaml

vi tomcat.yaml
kubectl apply -f tomcat.yaml
kubectl get svc
kubectl get pods

tomcat.yaml 内容:

```yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: tomcat-deployment
  labels:
    app: tomcat
spec:
  replicas: 1
  selector:
    matchLabels:
      app: tomcat
  template:
    metadata:
      labels:
        app: tomcat
    spec:
      containers:
      - name: tomcat
        image: tomcat
        ports:
        - containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
  name: tomcat-service
spec:
  ports:
  - port: 80
    protocol: TCP
    targetPort: 8080
  selector:
    app: tomcat
  type: NodePort
```

  1. 创建Ingress以及定义转发规则
kubectl apply -f my-ingress.yaml
kubectl get ingress
kubectl describe ingress nginx-ingress

my-ingress.yaml 内容:

#ingress
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: nginx-ingress
spec:
  rules:
  - host: tomcat.jack.com
    http:
      paths:
      - path: /
        backend:
          serviceName: tomcat-service
          servicePort: 80

规则说明:访问 tomcat.jack.com 的根目录时,会被转发到下面的 tomcat-service 服务,tomcat服务的地址是 192.168.19.77:8080

  1. 修改win的hosts文件,添加dns解析

    192.168.8.61 tomcat.jack.com
    # 这里配置 w1 节点的ip和域名对应(实际配置如下)
    172.16.11.129   tomcat.jack.com

  2. 打开浏览器,访问tomcat.jack.com

总结:如果以后想要使用Ingress网络,其实只要定义ingress,service和pod即可,前提是要保证 nginx ingress controller 已经配置好了。

0

评论区
